Overview
The Orion Motor Tech Thread Repair Kit is a comprehensive rethreading solution designed to restore damaged or stripped internal threads across a wide range of applications. This professional-grade kit combines both SAE and metric sizing options, making it an essential toolset for automotive repair, machinery maintenance, and general equipment restoration work.

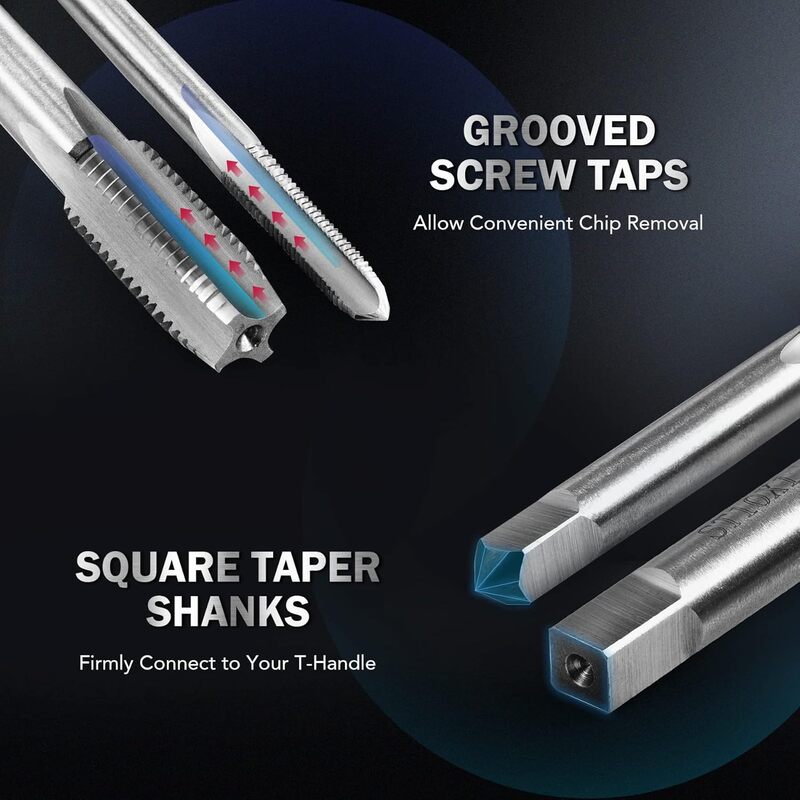

This all-inclusive system features high-speed steel drill bits with 135-degree points for precise hole preparation, durable screw taps for clean thread cutting, and 264 wire thread inserts that create new, stronger threads in damaged holes. The kit covers ten of the most commonly needed sizes: 1/4 inch, 5/16 inch, 3/8 inch, 7/16 inch, and 1/2 inch in SAE measurements, plus M5, M6, M8, M10, and M12 in metric sizes, ensuring compatibility with the majority of threaded fastener applications.
Each component in this helicoil kit is manufactured from quality steel and undergoes heat treatment to enhance strength and extend service life. The included installation tools allow for proper depth finding and secure insert placement, while the tang break-off tools provide clean finishing touches by removing excess material once inserts are properly seated. The 135-degree drill bit angle enables quick material removal and smooth hole preparation for optimal insert installation.
The complete set arrives in a rugged carrying case that keeps all components organized and protected during transport and storage. Whether you're repairing spark plug threads, restoring bolt holes in engine blocks, or performing preventative maintenance on critical threaded connections, this versatile kit provides everything needed to complete professional-quality thread restoration work efficiently.
Key Features
- Complete Size Coverage: Includes 10 essential sizes covering both SAE (1/4", 5/16", 3/8", 7/16", 1/2") and metric (M5, M6, M8, M10, M12) measurements for maximum versatility across automotive, industrial, and general repair applications.

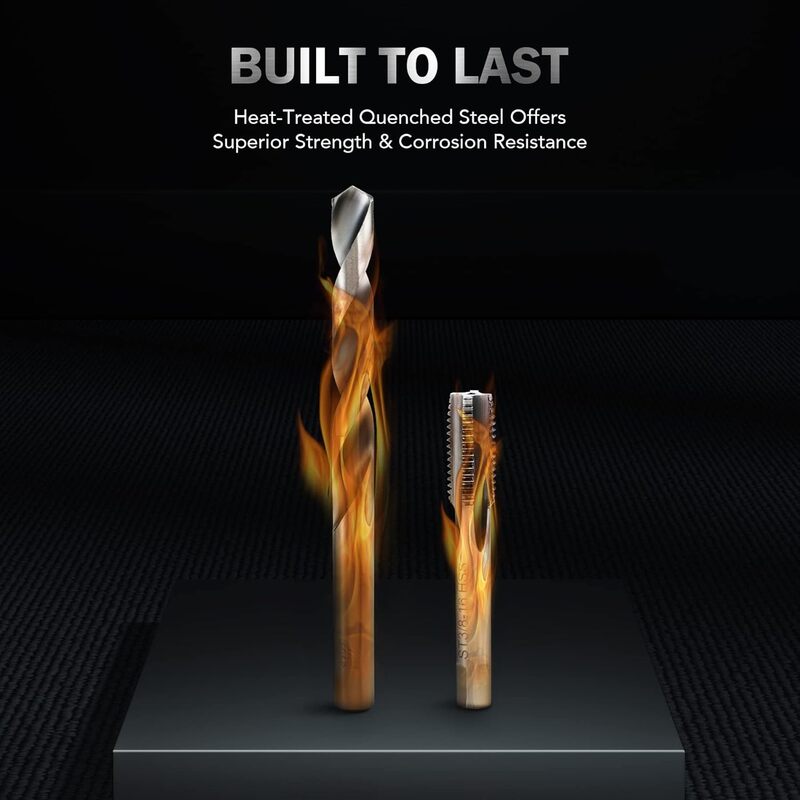

- High-Speed Steel Construction: Drill bits and taps manufactured from HSS material with heat treatment processing for superior hardness, wear resistance, and extended tool life even under demanding use conditions.
- Generous Insert Quantity: Contains 264 total wire thread inserts (127 SAE and 137 metric) providing multiple repair opportunities per size and ensuring you have sufficient supplies for numerous projects.

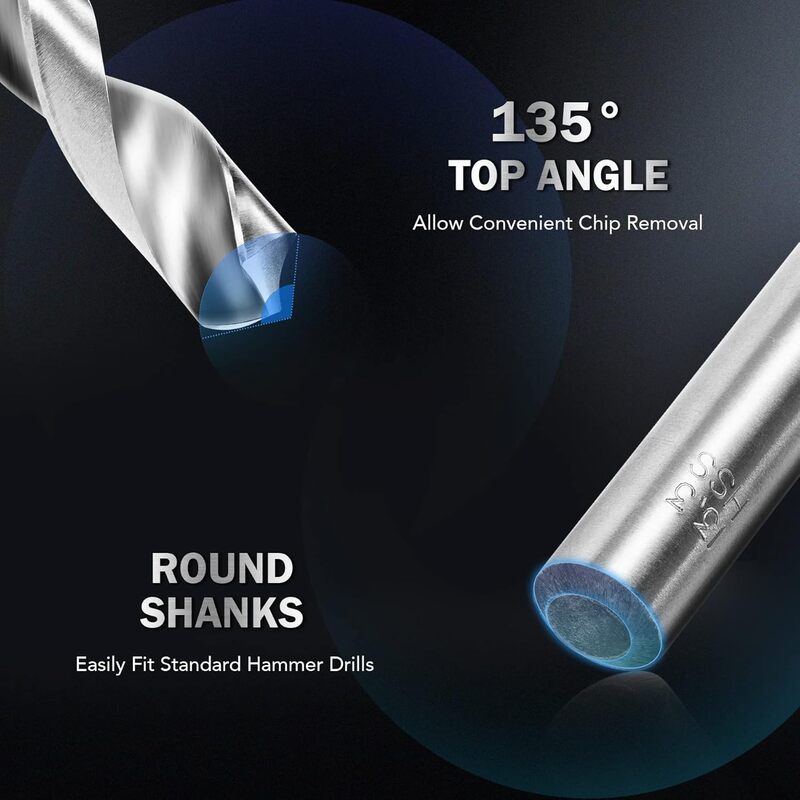

- 135-Degree Drill Bit Design: Specially angled drill bits create precise pilot holes quickly and efficiently, reducing drilling time and improving accuracy during the thread preparation process.

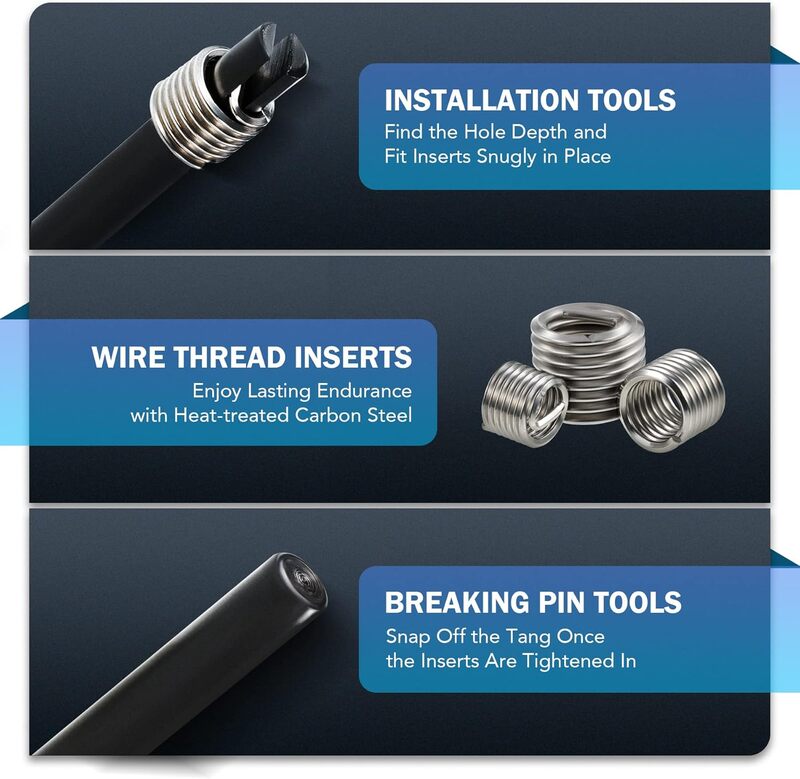

- Complete Tool Set: Features dedicated installation tools for controlled insert placement and breaking pin tools for clean tang removal, eliminating the need to source additional equipment for proper installation.
- Professional-Grade Durability: All tools constructed from quality steel with heat treatment for enhanced strength and longevity, capable of handling heavy-duty repair work in automotive and industrial environments.
- Organized Storage Solution: Rugged carrying case keeps all components systematically arranged and protected, facilitating easy transport between job sites and preventing loss of small parts.
- Versatile Thread Restoration: Suitable for repairing stripped or damaged threads in aluminum, cast iron, steel, and other materials commonly found in engines, transmissions, equipment housings, and machinery.
Specifications
- Brand: Orion Motor Tech
- Model Number: TRK-K262-BX
- Manufacturer: Orion Motor Tech
- Package Weight: 8.14 pounds
- Package Dimensions: 14.72 x 12.09 x 4.09 inches
- SAE Sizes Included: 1/4 inch, 5/16 inch, 3/8 inch, 7/16 inch, 1/2 inch
- Metric Sizes Included: M5, M6, M8, M10, M12
- Total Thread Inserts: 264 pieces (127 SAE, 137 Metric)
- Drill Bit Material: High-Speed Steel (HSS)
- Drill Bit Angle: 135 degrees
- Tap Material: High-Speed Steel
- Number of Drill Bits: 10 (5 SAE, 5 Metric)
- Number of Taps: 10 (5 SAE, 5 Metric)
- Number of Installation Tools: 10 (5 SAE, 5 Metric)
- Number of Breaking Pin Tools: 10 (5 SAE, 5 Metric)
- Case Type: Hard carrying case with organized compartments
Ideal For
- Automotive mechanics and technicians repairing stripped spark plug threads, oil pan drain plugs, and engine block bolt holes
- Industrial maintenance professionals performing equipment repair and preventative maintenance on machinery with damaged threaded connections
- DIY enthusiasts and home garage mechanics restoring threads in vehicle components, lawn equipment, and household machinery
- Fleet maintenance operations requiring reliable thread repair solutions for trucks, buses, and commercial vehicles
- Machine shops and fabrication facilities needing versatile thread restoration capabilities across multiple size ranges
- Equipment repair services working with aluminum, cast iron, and steel materials requiring permanent thread reinforcement
FAQs
Can this kit repair spark plug threads in aluminum cylinder heads?
Yes, the kit works excellently for spark plug thread repair in aluminum heads. The M12 and M14 sizes (depending on your spark plug specification) along with the included inserts create stronger threads than the original aluminum, providing a permanent repair solution.
Are the thread inserts permanent or can they be removed and reused?
The thread inserts are designed to be permanent installations once properly seated and the tang is broken off. They cannot be easily removed or reused, but they create a durable, long-lasting threaded connection that often exceeds the strength of the original material.
What materials can I use this thread repair kit on?
This kit works on aluminum, cast iron, steel, brass, and most other machinable metals commonly found in automotive engines, equipment housings, and machinery components. It is not suitable for extremely hard materials or plastics.
Do I need any additional tools to use this kit?
You will need a standard drill (corded or cordless) to operate the HSS drill bits and a tap wrench to turn the screw taps. All specialized installation and breaking tools are included in the kit.
How do the 135-degree drill bits differ from standard bits?
The 135-degree point angle provides better self-centering capability and requires less initial pressure, making it ideal for drilling into curved or angled surfaces often encountered in thread repair work. They also generate less heat during drilling compared to standard 118-degree bits.
Can this kit be used for external thread repair or only internal threads?
This helicoil kit is specifically designed for internal thread repair only. It restores damaged female threads in tapped holes but does not repair male threads on bolts or studs.
What is the purpose of the tang break-off tools?

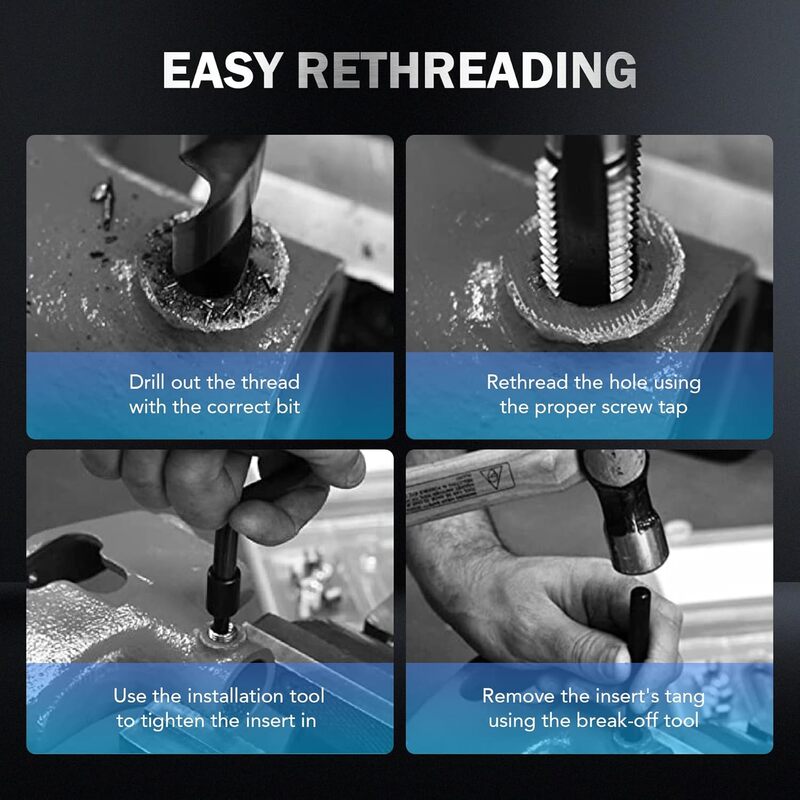

After installing a thread insert, a small tang protrudes that was used during installation. The breaking pin tools cleanly snap off this tang flush with the insert, preventing interference with the bolt or screw that will be installed in the repaired thread.
