Overview

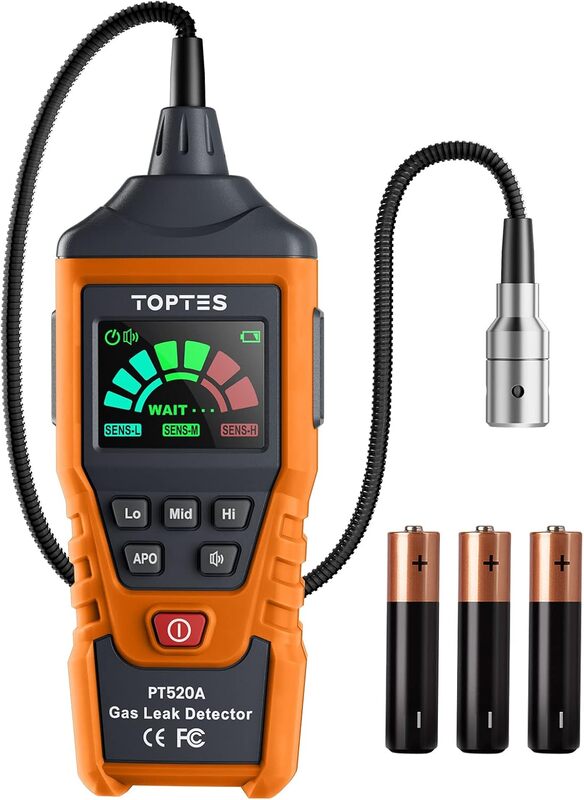

The TOPTES PT520A Natural Gas Detector is a portable, battery-powered gas sniffer designed for accurate and fast detection of combustible gases such as methane, propane, butane, LPG, and natural gas. Engineered for both home and professional use, it delivers reliable performance in locating gas leaks in hard-to-reach areas.
Equipped with a 17-inch flexible gooseneck, the PT520A easily accesses pipelines, storage tanks, basements, fireplaces, and other confined spaces where leaks are often difficult to pinpoint. Its fast 0.5-second response time ensures rapid detection, while a combination of a 75 dB audible alarm and 7-segment LED bar display provides immediate, clear feedback on gas concentration levels.
The detector operates on three AAA batteries, featuring a 10-minute Auto Power-Off function to conserve power, which can be disabled as needed. A dedicated Mute button allows for silent operation during sensitive inspections, and its non-slip, wear-resistant ABS housing ensures secure handling in various environments.
With a wide detection range of 50–10,000 ppm (Methane) and durable build quality, the PT520A is well-suited for residential safety checks, RV inspections, HVAC maintenance, and routine pipeline inspections.
Key Features
- Fast Gas Detection: Responds in 0.5 seconds with visual and audible alarms for real-time leak identification.

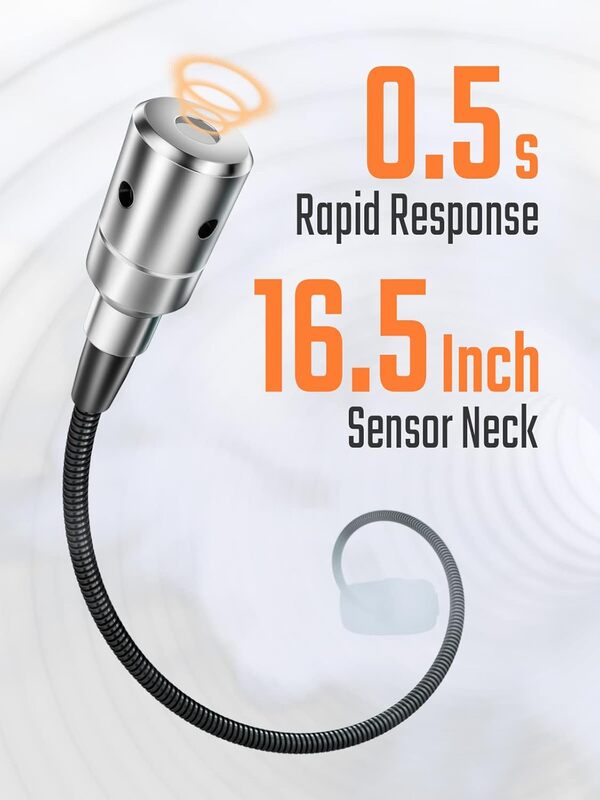

- Flexible 17-Inch Gooseneck: Reaches tight spaces around pipelines, storage tanks, and appliances with precision.
- Wide Detection Range: Detects combustible gases from 50 to 10,000 ppm, suitable for methane, propane, butane, and LPG.

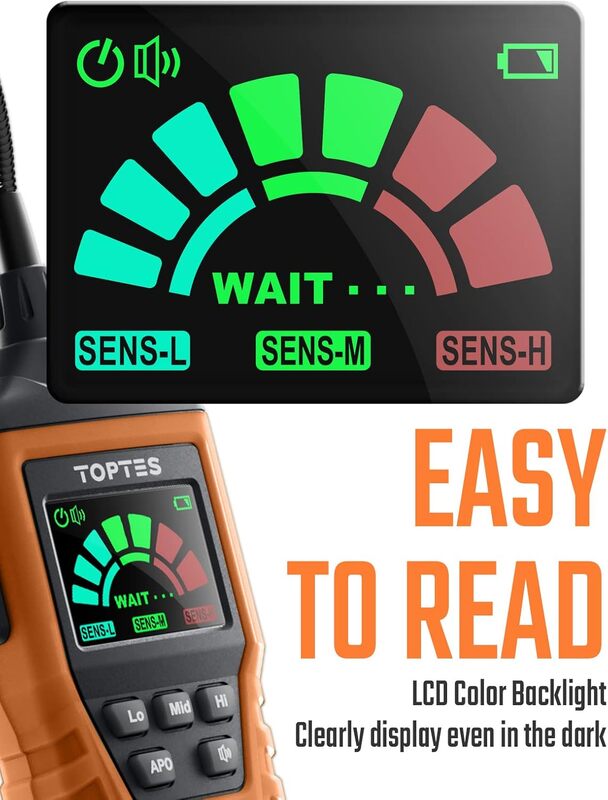

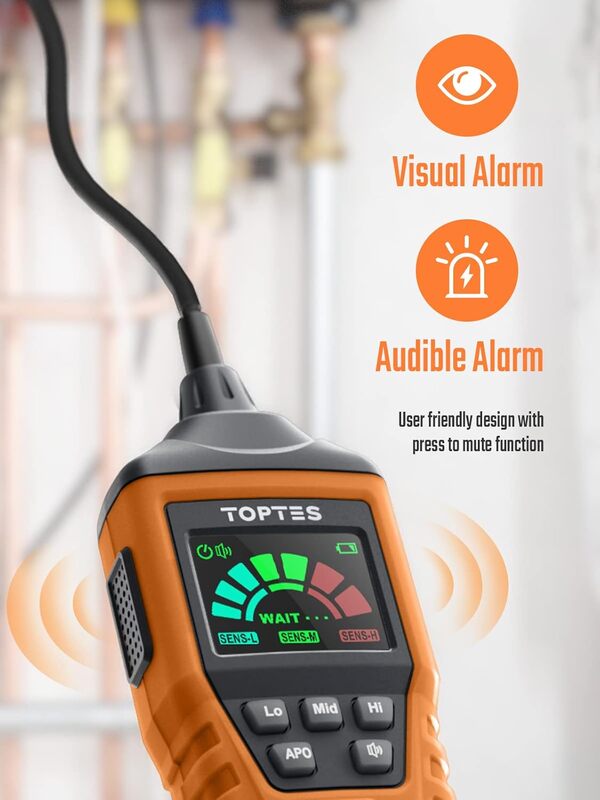

- Audible and Visual Alarms: 75 dB sound with 7 LED bars that increase in intensity with gas concentration.
- Adjustable Sensitivity: Three levels of sensitivity for different detection environments and gas levels.
- Auto Power-Off Function: Powers down after 10 minutes of inactivity to save battery, with manual override.
- Mute Function: Allows silent operation during maintenance or inspection in noise-sensitive areas.
- Portable and Lightweight: Weighs only 0.26 kg, making it ideal for handheld use during inspections.
- Durable ABS Housing: Non-slip, wear-resistant construction ensures long-lasting performance.
- Battery Powered: Operates on 3 AAA batteries, included in the package for immediate use.
Specifications
- Brand: TOPTES
- Model Number: PT520A
- Color: Orange
- Power Source: Battery Powered (3 x AAA)
- Input Voltage: 4.5 V (3 x 1.5 V AAA batteries)
- Detection Range: 50–10,000 ppm (Methane)
- Sensor Type: Electrochemical
- Alarm Type: Audible & Visual (75 dB + 7 LED bars)
- Response Time: 0.5 seconds
- Gooseneck Length: 17 inches
- Display Type: LED bar indicator
- Auto Power-Off: 10 minutes (can be disabled)
- Operating Humidity: 80% max
- Upper Temperature Rating: 122 °F
- Dimensions: 11.22 in (D) x 2.36 in (W) x 5.31 in (H)
- Weight: 0.26 kg (260 g with batteries)
- Enclosure Material: ABS
- Warranty: Standard manufacturer’s warranty (see manual)
- Certifications: CE, RoHS compliant
Ideal For
- Homeowners performing routine safety checks for gas leaks
- RV owners and travelers inspecting onboard gas lines and appliances
- HVAC technicians and maintenance professionals detecting leaks in tight spaces
- Facility inspectors examining storage tanks, basements, or pipelines
- DIY users looking for an affordable, reliable gas detection tool

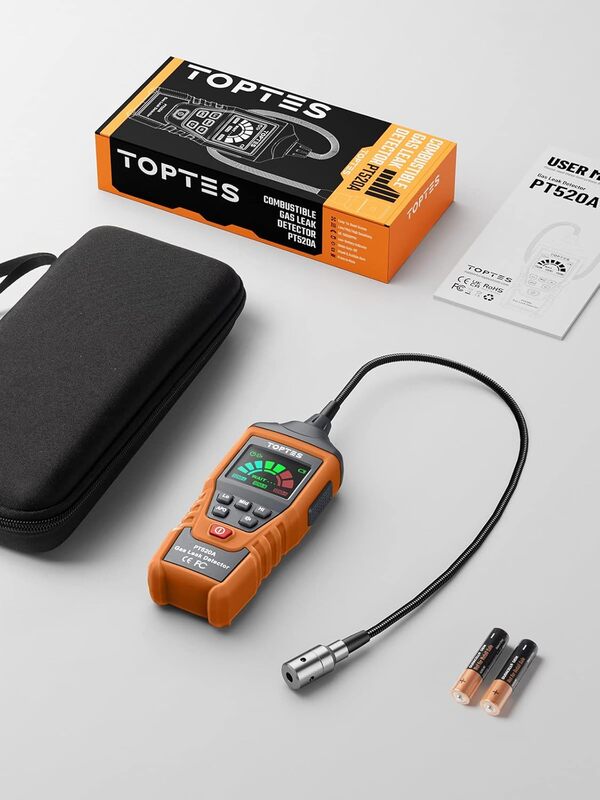

Package Includes
- 1 × PT520A Natural Gas Detector
- 3 × AAA Batteries
- 1 × Protective Storage Case
- 1 × Multilingual User Manual
FAQs
Is the PT520A suitable for continuous monitoring?
No. The PT520A is a handheld, portable detector intended for periodic inspections and leak localization, not continuous monitoring.
Why is the 17-inch gooseneck important?
It allows you to detect leaks in hard-to-reach places such as behind appliances, inside cabinets, or around pipelines.
Where can I use the PT520A gas leak detector?
It can be used around natural gas pipelines, stoves, ovens, furnaces, water heaters, storage tanks, RV lines, and basements.
Why does the device need to warm up for 30 seconds?
This ensures the sensor stabilizes and delivers accurate readings during operation.
How close does the detector need to be to find a leak?
Typically 1-5 cm from the suspected source, depending on gas concentration and leak severity.
Can I mute the alarm during inspections?
Yes. The Mute button allows for silent operation when needed.
How do I conserve battery life during use?
Enable the Auto Power-Off function, which turns the device off after 10 minutes of inactivity. You can disable it when required.
