Overview
The BOSS Audio Systems CH6530B Chaos Series 6.5" coaxial speakers deliver powerful, full-range sound for car doors and rear deck installations. Built with durable materials and a 3-way design, they provide clear highs, balanced mids, and punchy bass in a compact, easy-to-fit package.
Designed for reliable day-to-day performance, the CH6530B features a poly injection cone with rubber surround, a high-temperature voice coil, and a piezo tweeter plus polyimide midrange for crisp detail and durability. Rated to 300W max (pair) with 90 dB sensitivity, these speakers are a strong choice for drivers who want clear, dependable audio without complex setup.
Key Features
- 300 Watts Max (per pair): High peak power handling for dynamic playback.

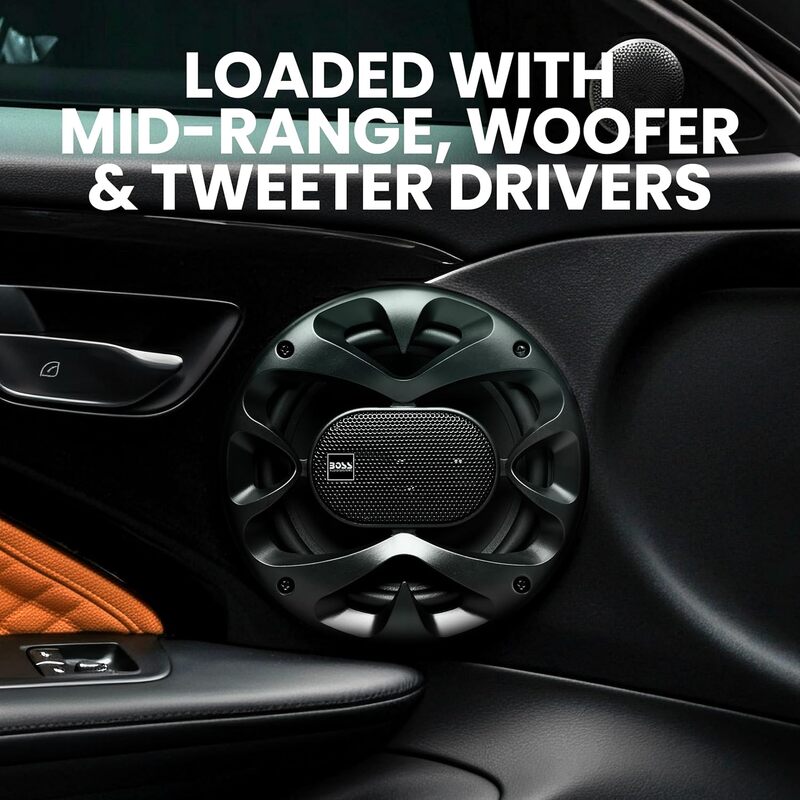

- 3-Way Full Range Design: Woofer, midrange, and tweeter deliver balanced sound across frequencies.
- Poly Injection Cone: Durable cone material for consistent sound and longevity.
- Rubber Surround: Weather-resistant surround for better durability and cone excursion.
- 1" High-Temperature Voice Coil: Improved heat tolerance for sustained performance.
- 0.5" Piezo Tweeter: Clear, reliable high-frequency response with overload resistance.
- 1" Polyimide Dome Midrange: Accurate midrange reproduction for vocals and instruments.
- Sensitivity: 90 dB @ 1W/1m: Efficient output from common head units.
- Frequency Response: 100 Hz - 15 kHz - Balanced range for typical in-car listening.
- Impedance: 4 Ohms: Compatibility with most factory and aftermarket systems.

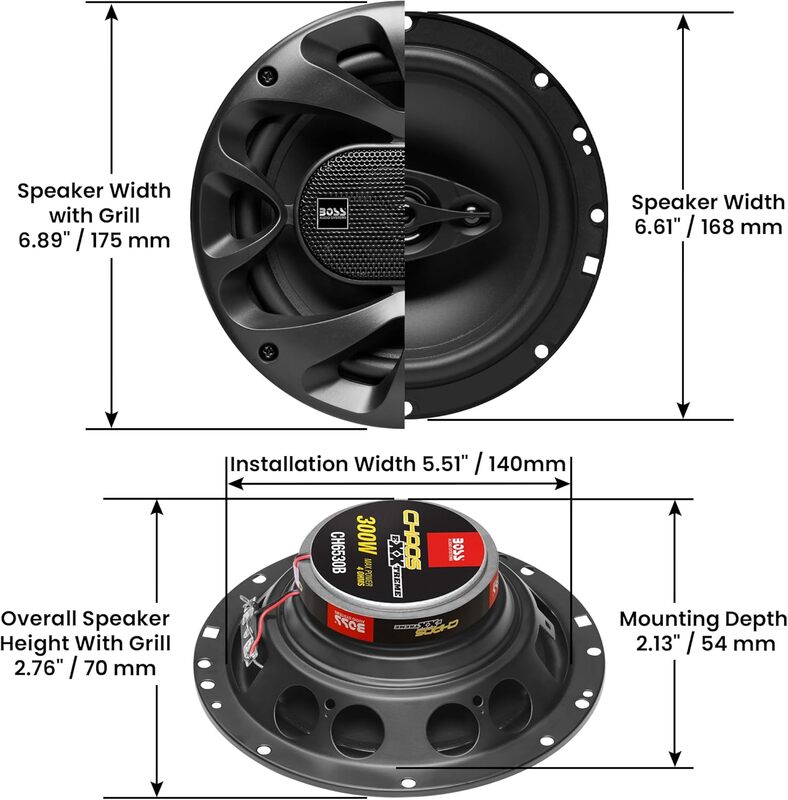

- Mounting Depth: 2.13" / Cutout: 5.5" - Fits most standard 6.5" mounting locations.
- Sold in Pairs: Left and right speakers included.
- 3-Year Platinum Online Dealer Warranty (when purchased via Amazon): Extended support when bought through authorized channels.
Technical Specifications
- Brand: BOSS Audio Systems
- Model: CH6530B (Chaos Series)
- Speaker Size: 6.5 inches
- Number of Ways: 3-Way Coaxial (Woofer / Midrange / Tweeter)
- Power Handling: 300 Watts Max (per pair)
- RMS Power: (nominal depends on head unit/amplifier)
- Impedance: 4 Ohms
- Sensitivity: 90 dB @ 1W/1m
- Frequency Response: 100 Hz – 15 kHz
- Woofer Cone Material: Poly Injection
- Surround Material: Rubber
- Voice Coil: 1" High-Temperature Voice Coil
- Tweeter: 0.5" Piezoelectric Tweeter
- Midrange: 1" Polyimide Dome Midrange
- Mounting Depth: 2.13 inches
- Cutout / Mounting Hole: 5.5 inches
- Dimensions (Approx): 6.6" × 6.6" × 2.4"
- Weight: ~2.9 lbs (pair)
- Mounting Type: Flush Mount
- Enclosure Material: Polyurethane / stamped basket components
- Compatibility: Designed for car door and rear deck installations; compatible with most factory and aftermarket stereos
- Water Resistance: Not waterproof - intended for interior vehicle locations
- Warranty: 3-Year Platinum Online Dealer Warranty (via Amazon purchase)

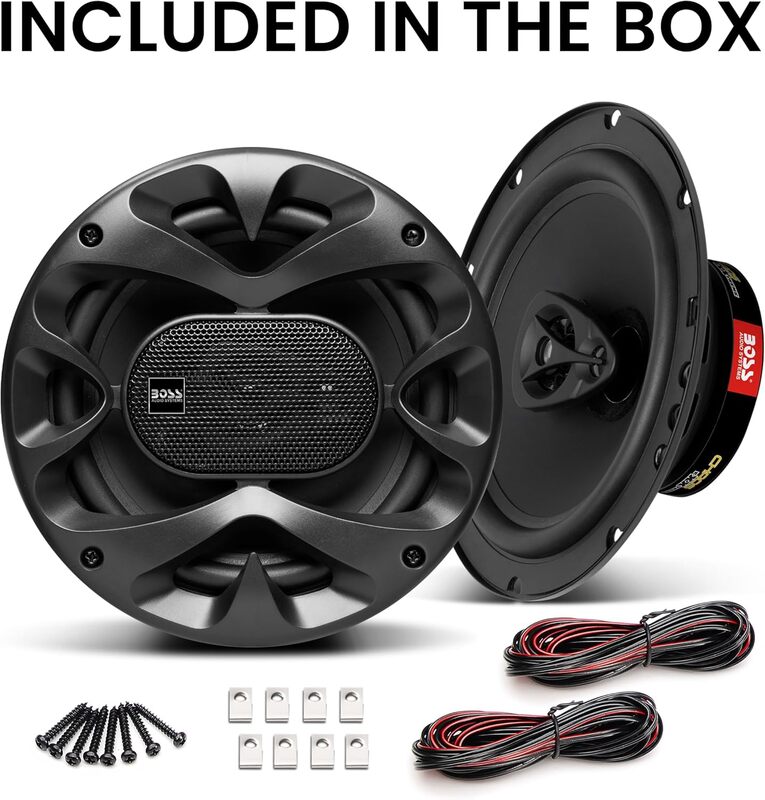

What's in the Box
- BOSS Audio Systems CH6530B 6.5" Speakers ×2 (pair)
- Installation / User Manual ×1
- Warranty & Support Documentation ×1
FAQs
Are these speakers compatible with any car?
Yes, these are standard 6.5" coaxial speakers that fit most vehicles. Please check your car's mounting depth (2.13") and cutout size (5.5") before purchase.
Do I need an external amplifier to use these speakers?
No, these speakers can run off your factory or aftermarket head unit. However, pairing them with an amplifier can maximize performance.
Can I install these speakers myself?
Yes, they are designed for easy installation. However, professional installation is recommended to ensure the best sound quality and safety.
Do these speakers produce good bass?
These are full-range speakers with a balanced sound profile. They provide solid bass for their size but for deep low-end bass, pairing with a subwoofer is recommended.
Are these speakers waterproof?
No, the CH6530B speakers are not waterproof and should be installed in standard interior car door or rear deck locations.
What type of warranty do they come with?
They include a 3-year platinum online dealer warranty when purchased from Amazon.com.
Do these come as a single speaker or a pair?
They are sold in pairs (two speakers per box).
Can I use these with my factory stereo system?
Yes, they are fully compatible with most factory head units and aftermarket systems.
Do they support Bluetooth or wireless connection?
No, these are wired coaxial speakers. Wireless functionality depends on your car stereo, not the speakers.
What's included in the box?
You’ll receive two CH6530B 6.5" speakers along with the installation manual and warranty information.
