Overview
The JVC CS-J620 6.5" CS Series 2-way coaxial car speakers deliver clear, full-range audio for daily driving or custom car audio upgrades. Each speaker combines a mica cone woofer with a 1" PEI balanced dome tweeter to produce detailed highs and smooth mids, while the hybrid rubber and cloth surround ensures durability and consistent performance. With 300W peak and 30W RMS power handling, along with 92 dB sensitivity and 4 Ohm impedance, the CS-J620 provides dynamic sound with minimal distortion. Its shallow mount design and pre-arranged mounting holes simplify installation, making it a perfect upgrade over OEM drivers.
Key Features
- 6.5" Speaker Size: Fits standard car door and rear deck locations
- 2-Way Coaxial Design: Woofer and tweeter deliver balanced full-range audio
- 300W Peak / 30W RMS Power: Handles high-volume playback without distortion
- 1" PEI Balanced Dome Tweeter: Crisp, clear high-frequency sound
- Mica Cone Woofer: Accurate midrange and low-end performance
- Hybrid Rubber & Cloth Surround: Enhances durability and sound fidelity
- Frequency Response: 35 Hz - 22 kHz - Wide dynamic range for music
- Sensitivity: 92 dB - Efficient output from most head units
- Impedance: 4 Ohms - Compatible with most factory and aftermarket stereos

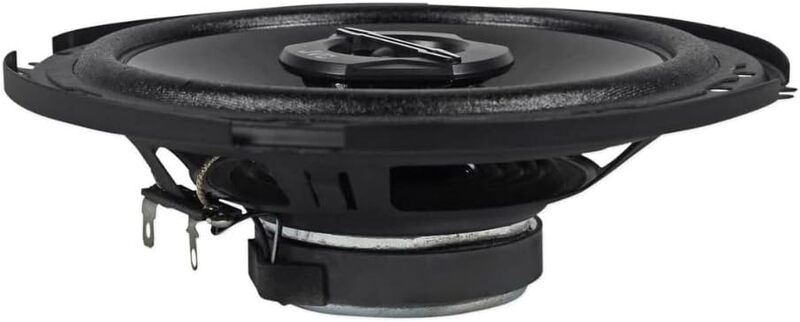

- Shallow Mount Depth: 1-23/32" - Easy installation without hitting window tracks

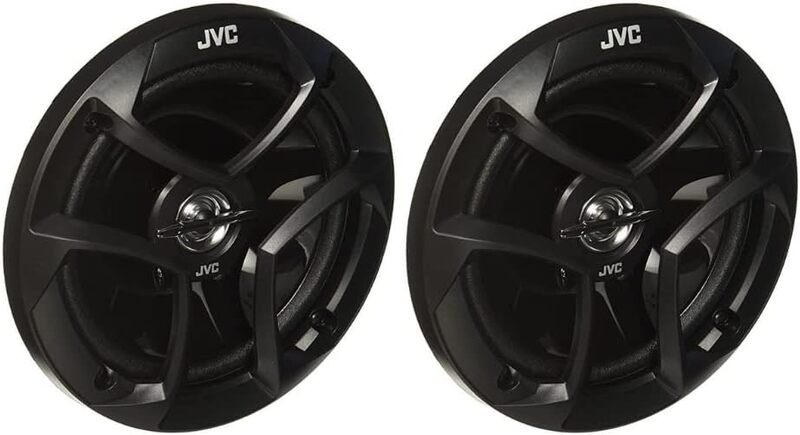

- Black ABS Composite Grills: Sleek design with driver protection
- Pre-arranged Mounting Holes: Simplifies installation
- Includes Screws, Mounting Tabs, and Speaker Wire Extension Cables
Technical Specifications
- Brand: JVC
- Model: CS-J620
- Speaker Type: 2-Way Coaxial Car Speaker
- Audio Channels: 2.0 (Stereo)
- Woofer Size: 6.5 inches
- Tweeter Size: 1 inch
- Woofer Composition: Mica Injected Polypropylene (MIPP)
- Tweeter Composition: Poly-Ether Imide (PEI)
- Woofer Surround: Hybrid Rubber & Cloth
- Impedance: 4 Ohms
- Peak Power Handling: 300 Watts per speaker
- RMS Power Handling: 30 Watts per speaker
- Sensitivity: 92 dB @ 1W/1m
- Frequency Response: 35 - 22,000 Hz
- Mounting Type: Surface Mount or Flush Mount
- Top-Mount Depth: 1-23/32 inches
- Color: Black
- Connectivity Technology: Coaxial Wired
- Dimensions (Approx): 13"D × 8"W × 4"H (package)
- Weight: 2.2 lbs per speaker
- Warranty: Limited (30 Days Amazon return guarantee)
- Water Resistance: Not waterproof
- Compatible Devices: Car, Truck
Ideal For
- Car enthusiasts looking to upgrade stock OEM speakers
- Daily drivers wanting clear full-range audio
- Custom car audio builds requiring balanced mids and highs
- Drivers seeking high sensitivity and efficient speakers
- Easy installation for door and rear deck applications

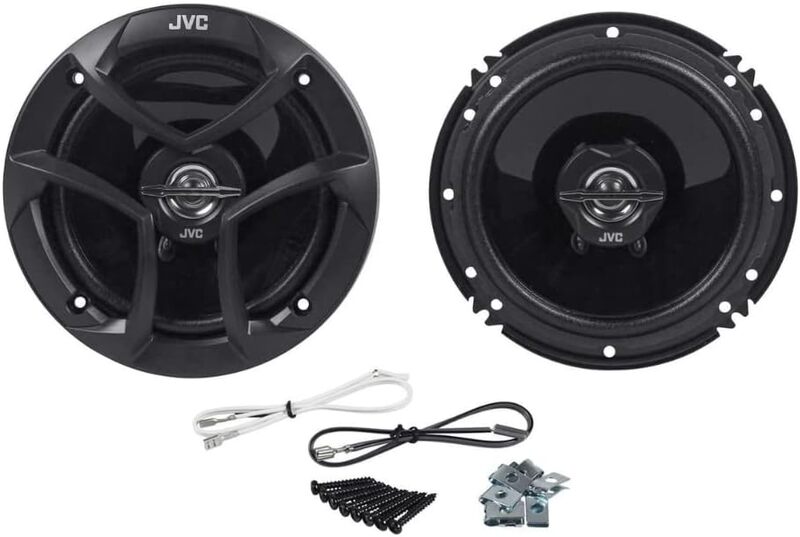

What's in the Box
- 2 × JVC CS-J620 6.5" 2-Way Coaxial Car Speakers (Pair)
- Speaker Wire Extension Cables with Quick Disconnects
- Mounting Screws and Tabs
- User / Installation Manual
FAQs
Are these speakers sold individually or as a pair?
They are sold as a set of 2, providing full stereo output for your vehicle.
Do I need an amplifier to use these speakers?
They can operate with most factory head units, but adding an amplifier will maximize sound quality and power handling.
What is the mounting depth?
The top-mount depth is 1-23/32 inches, compatible with most car door and rear deck installations.
What type of tweeter do these speakers use?
They use a 1" Poly-Ether Imide (PEI) balanced dome tweeter for clear, high-frequency audio.
Are these speakers waterproof?
No, they are intended for interior car installation only.
What materials are used in the woofer and surround?
The woofer is made from mica injected polypropylene, and the surround is a hybrid of rubber and cloth for durability and performance.
How easy is installation?
Pre-arranged mounting holes and a shallow frame make installation simple; screws, mounting tabs, and wire extensions are included.
What is the frequency response?
They cover 35 Hz - 22 kHz, providing a wide range of lows, mids, and highs.
What vehicles are these compatible with?
They are compatible with most cars and trucks, replacing standard 6.5” OEM speakers.
What warranty is included?
They include a limited warranty with a 30-day return guarantee through Amazon.
