Overview

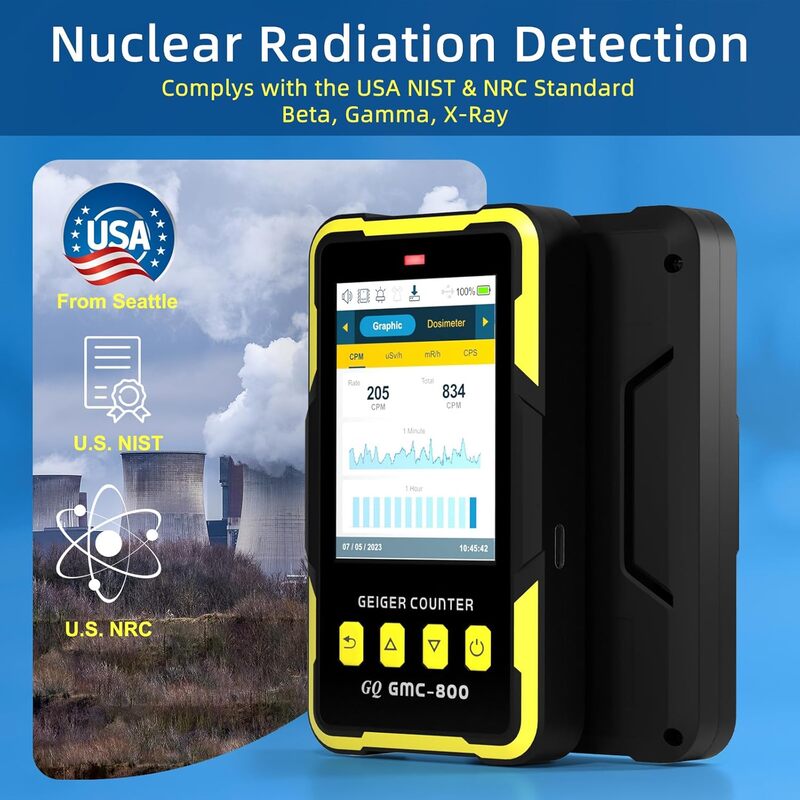

The GQ GMC-800 Nuclear Radiation Detector is a portable and professional-grade Geiger counter designed for accurate and rapid detection of Beta, Gamma, and X-ray radiation. Developed in the USA to meet NIST and NRC standards, it provides precise, reliable, and fast readings suitable for personal, group, and professional use.
This radiation detector features a large color TFT LCD display capable of showing multiple dosimeter readings at once, including real-time dose rate, cumulative dose, and exposure data. Users can switch between four function screens instantly using a single key, allowing immediate assessment of radiation levels both indoors and outdoors.

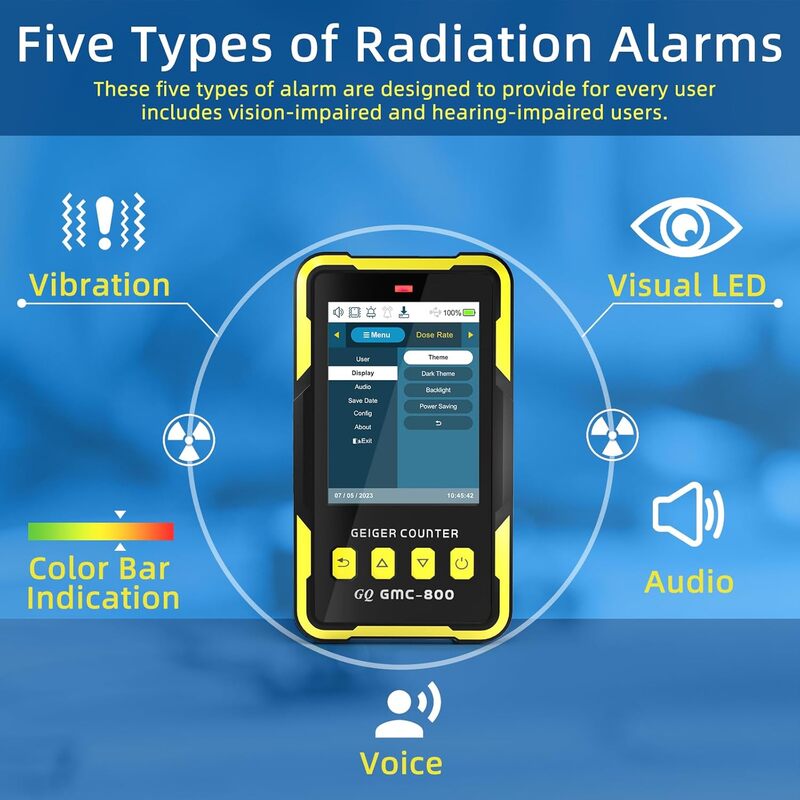

The GMC-800 incorporates five types of alarms: visual LED, audio click, vibration, voice, and screen color bar, ensuring that everyone, including vision- or hearing-impaired users, is notified when radiation exceeds a set threshold. Alarm levels are fully customizable for personal safety and professional monitoring.

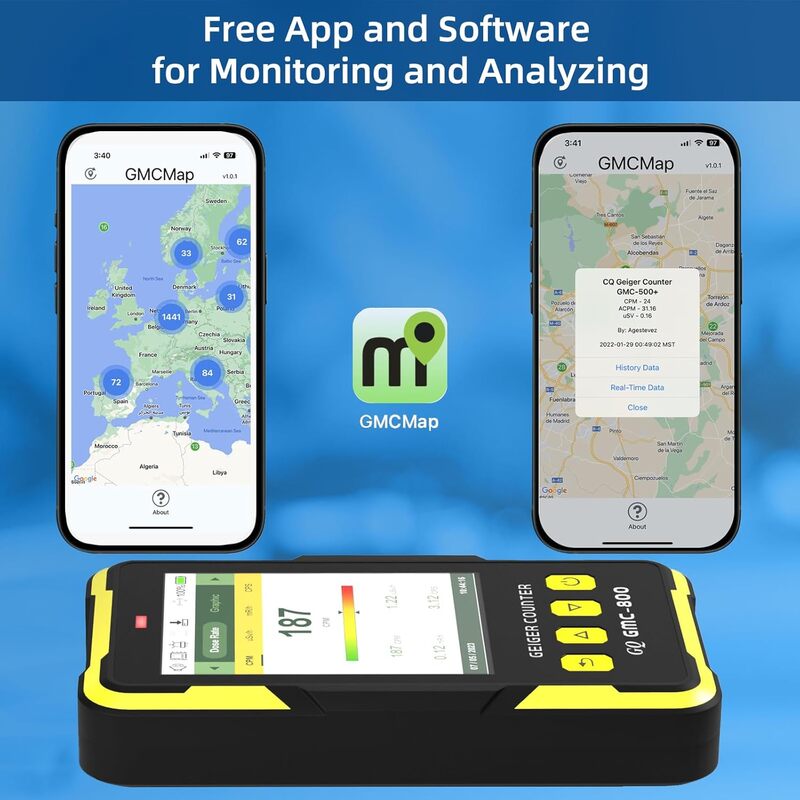

Equipped with a rechargeable Lithium Ion battery and Type-C charging/data cable, this radiation detector supports long-term data logging, history preview, and global data sharing. Advanced menu features and intuitive user interface allow customization of light/dark mode, color schemes, and graphic display preferences for enhanced readability and comfort.
Key Features
- Multi-Radiation Detection: Accurately detects Beta, Gamma, and X-ray nuclear radiation across 0.1–3 MeV energy range.
- Large Color TFT LCD Display: Shows real-time, cumulative, and exposure dose rates simultaneously, readable in sunlight.
- Five Alarm Types: Visual LED, audio click, vibration, voice, and color bar alarms with customizable thresholds.
- Dosimeter Function: Measures real-time and accumulated radiation on human body for personal safety monitoring.

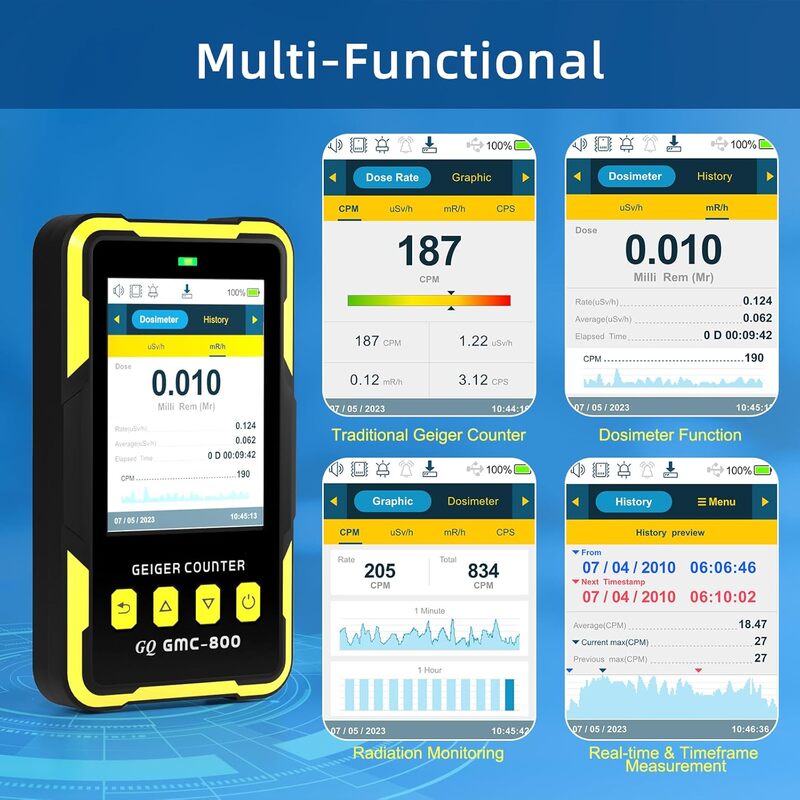

- Multi-Functional Operation: Traditional Geiger counter, real-time/timeframe measurement, radiation monitoring over time.

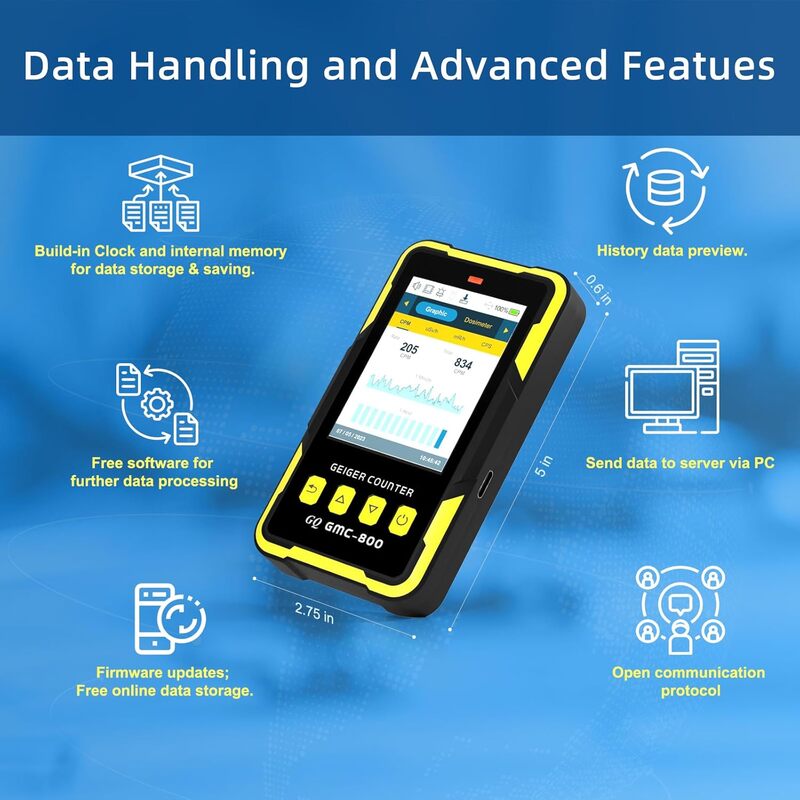

- Long-Term Data Logging: Built-in memory with history data preview and online data storage capability.
- Rechargeable and Replaceable Battery: Lithium Ion battery with Type-C charging; external charging option available.

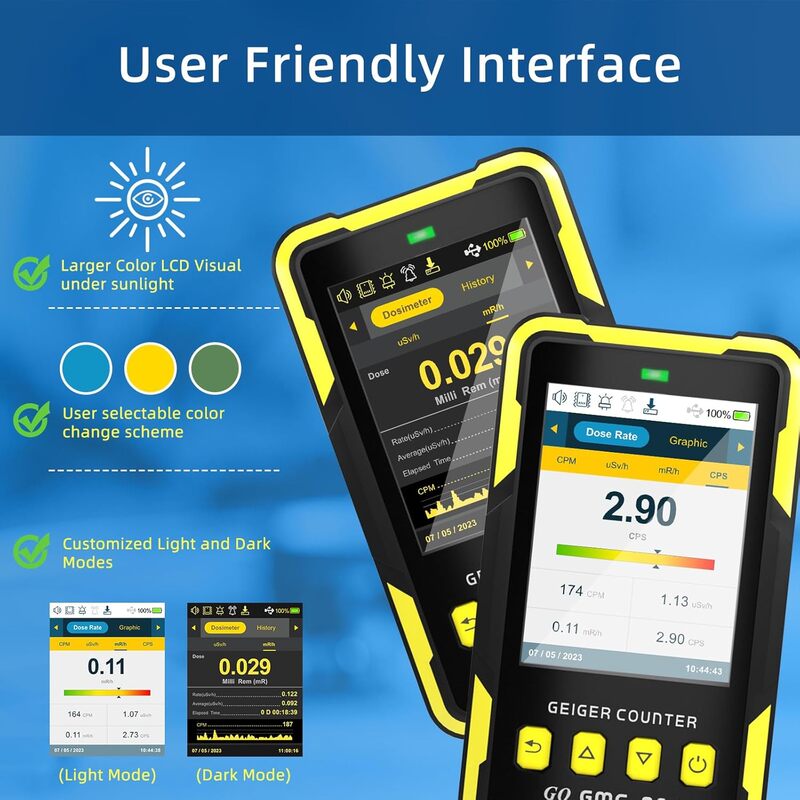

- User-Friendly Interface: Intuitive menu, shortcut keys, customizable light/dark mode, and graphic display.

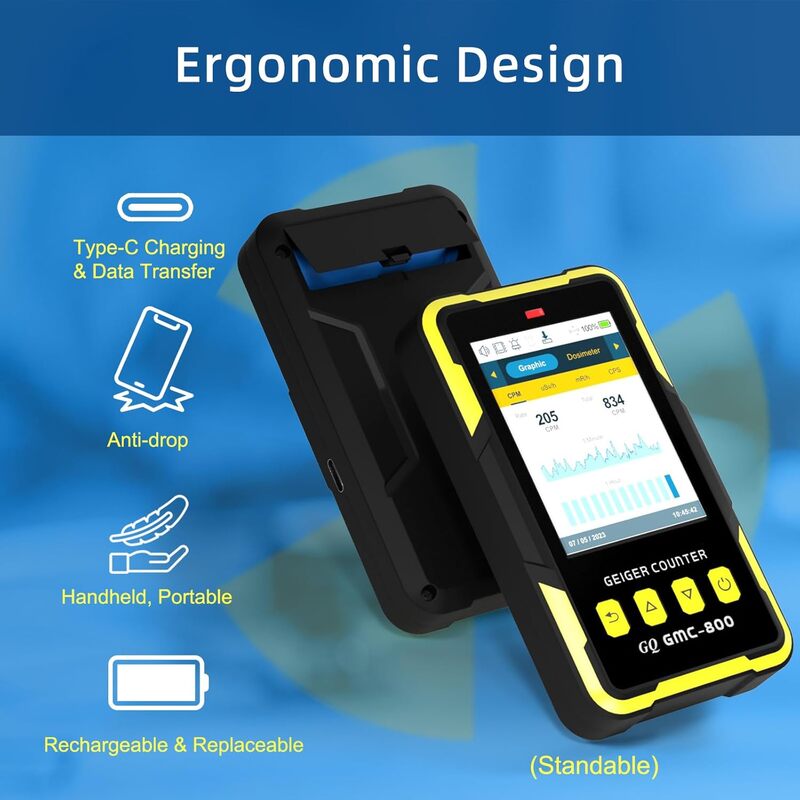

- Portable and Robust: Lightweight, anti-drop design suitable for handheld, pocket, stand, or surface use.
Specifications
- Brand: GQ Electronics
- Model Number: GMC-800
- Color/Variant: Blue
- Input Voltage: 3.6–3.7V
- Output Voltage: N/A
- Output Current: N/A
- Radiation Detection: Beta, Gamma, X-ray
- Detectable Radiation Range: 0.1 – 3 MeV
- Dose Rate Indication Range: 0.00 – 2000 µSv/h
- Exposure Dose Rate Range: 0.00 – 200 mRem/h
- Registered Beta Radiation Energy Range: 0.25 – 3.5 MeV
- Registered Gamma Radiation Energy Range: 0.1 – 1.25 MeV
- Registered X-ray Radiation Energy Range: 0.03 – 3.0 MeV
- Display Type: Large Color TFT LCD dot matrix
- Onboard Memory: 2M Bytes
- Power Consumption: 25–125 mW
- Physical Dimensions: 2.75 × 4.92 × 0.59 in
- Weight: 8.78 oz
- Certifications: Compliant with USA NIST & NRC standards
- Warranty: Manufacturer Warranty Included
Ideal For
- Professionals monitoring radiation in laboratories, nuclear facilities, or industrial sites
- Students and researchers performing portable nuclear radiation measurements
- Safety-conscious individuals monitoring personal or home radiation exposure
- Emergency responders conducting field radiation inspections
- Health and safety auditors tracking cumulative radiation levels over time
Package Includes
- 1 × GQ GMC-800 Nuclear Radiation Detector
- 1 × Type-C Charging/Data Cable
- 1 × Quick Start Guide
- 1 × Safety Reference Card
FAQs
Can the GMC-800 detect all types of nuclear radiation?
It detects Beta, Gamma, and X-ray radiation within 0.1–3 MeV energy range.
How accurate is the GQ GMC-800?
The device meets USA NIST and NRC standards and is calibrated before shipment for precision.
How long does the battery last?
The rechargeable Lithium Ion battery supports several hours of continuous use and is replaceable.
How many alarm types are available?
Five alarms: visual LED, audio click, vibration, voice, and screen color bar with customizable thresholds.
Can I use it outdoors in sunlight?
Yes, the large TFT LCD display is readable under direct sunlight and supports outdoor use.
Does the GMC-800 store past radiation data?
Yes, it logs data internally with history preview and online sharing options.
Is it suitable for both personal and professional use?
Yes, it is designed for personal safety, professional labs, field monitoring, and group use.
