Overview

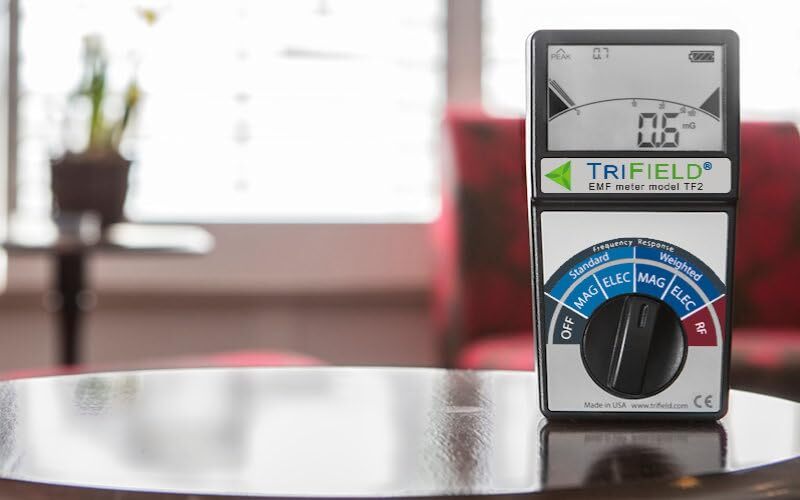

The TriField EMF Radiation Detector Model TF2 is a professional-grade handheld instrument engineered to accurately measure electromagnetic fields across magnetic, electric, and radio frequency (RF) spectrums. Manufactured and serviced in the USA by AlphaLab, this meter combines three devices in one compact, easy-to-use unit.
Equipped with a true 3-axis magnetic sensor, single-axis electric field sensor, and RF detection from 20 MHz to 6 GHz, it captures a wide range of EMF emissions including most 5G frequencies. Its large backlit LCD display updates rapidly, offering both average and peak readings, ensuring accurate and real-time measurement of dynamic EMF signals from WiFi routers, Bluetooth devices, cell towers, and household wiring.
The TF2 is designed for versatile use in homes, offices, vehicles, and field environments, helping users identify high-EMF zones, troubleshoot grounding issues, and assess exposure levels. Standard and weighted modes allow users to emphasize biological frequency responses for more health-focused evaluations.
With intuitive knob-based mode selection, long battery life, and reliable American manufacturing, the TriField TF2 is trusted by professionals and homeowners alike for comprehensive electromagnetic field analysis.
Key Features

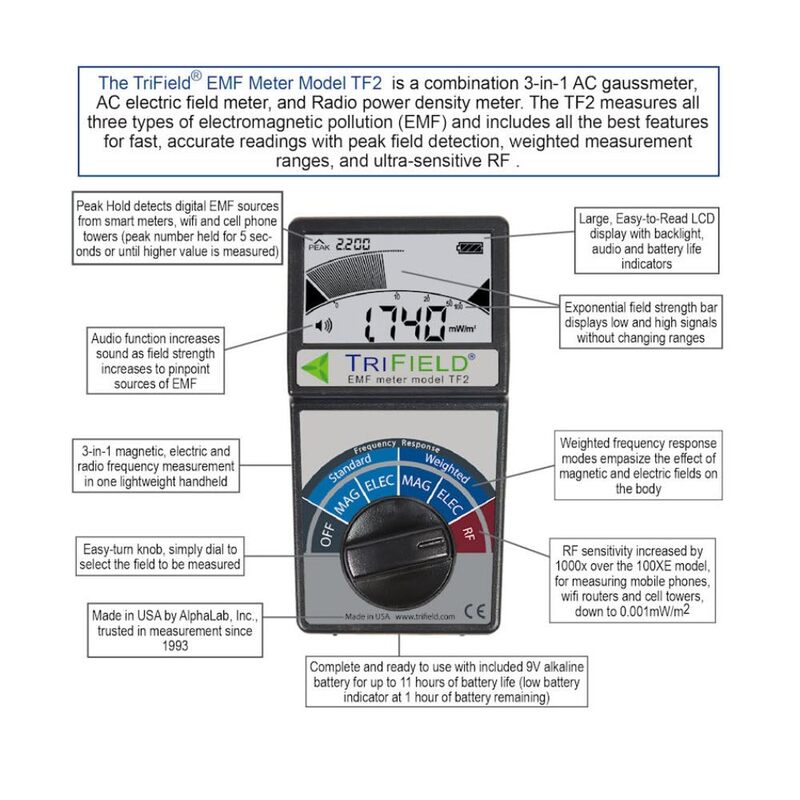

- 3-in-1 Detection: Measures magnetic, electric, and RF fields in one compact unit for complete EMF analysis.

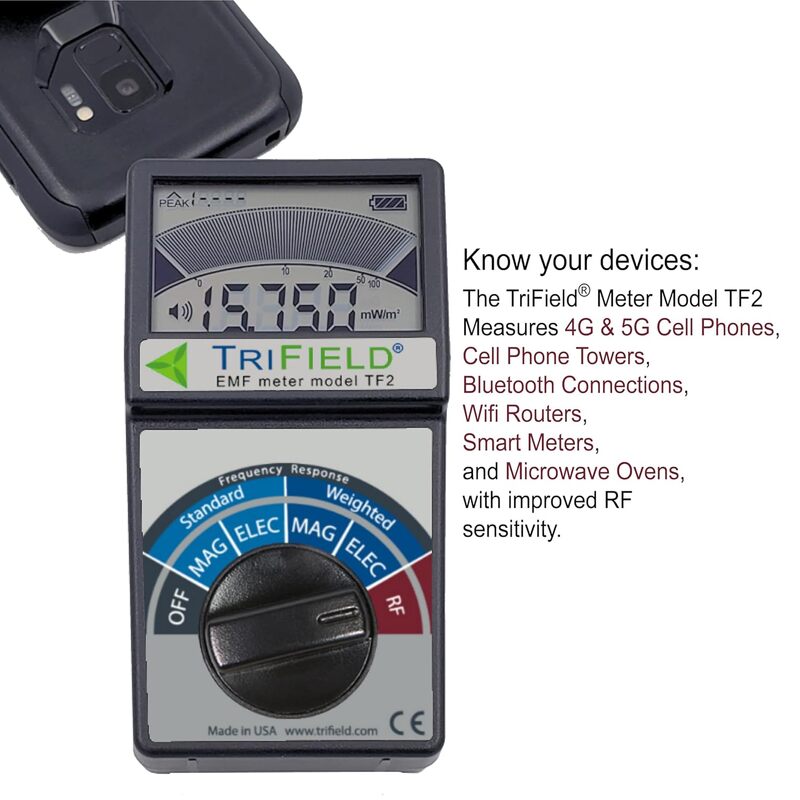

- Wide RF Range: Detects frequencies from 20 MHz to 6 GHz, including most 5G, WiFi, Bluetooth, and cellular signals.
- True 3-Axis Magnetic Sensor: Ensures accurate magnetic field readings regardless of orientation.
- Instant EMF Fluctuation Display: Bars update instantly and RF averages refresh 4 times per second for real-time monitoring.
- Weighted Mode: Emphasizes higher frequencies to assess potential biological effects more effectively.
- High Sensitivity: Detects low-level RF signals often missed by other meters, providing accurate environmental measurements.

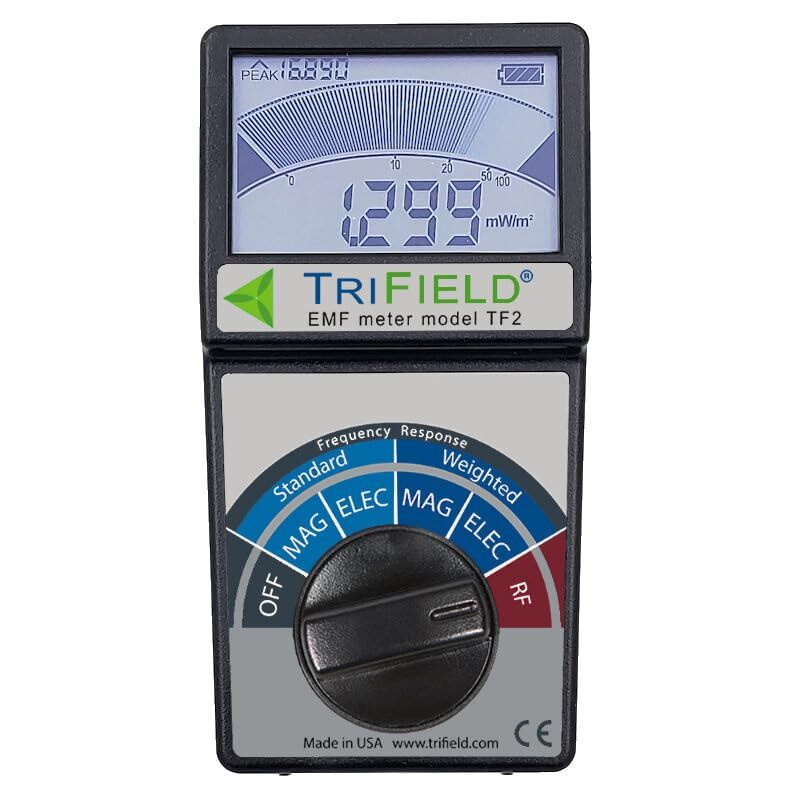

- Large Backlit LCD: Easy-to-read display with peak hold and audio indicators for fast signal localization.
- User-Friendly Operation: Simple knob control for switching between measurement modes with no complex setup required.
- Portable and Lightweight: Ergonomic design for field work, home assessments, and professional EMF inspections.
- Made in USA: Designed, manufactured, and serviced in Salt Lake City, Utah, with free lifetime U.S. support.
Specifications
- Brand: TriField
- Model Number: TF2
- Color/Variant: Black and Grey
- Detection Types: Magnetic, Electric, RF
- RF Frequency Range: 20 MHz–6 GHz
- Magnetic Sensor: 3-axis, 40 Hz–100 kHz
- Electric Sensor: Single-axis, 40 Hz–100 kHz
- Magnetic Accuracy: ±4% at 50/60 Hz
- Electric Accuracy: ±5% at 50/60 Hz
- RF Accuracy: ±20% at 1 GHz
- Maximum Magnetic Range: 100.0 milligauss
- Maximum Electric Range: 1000 V/m
- Maximum RF Range: 19.999 mW/m²
- Sensitivity (RF): 0.001 mW/m²
- Display Type: Large backlit LCD with peak hold and indicator bar
- Power Source: 9V battery (included)

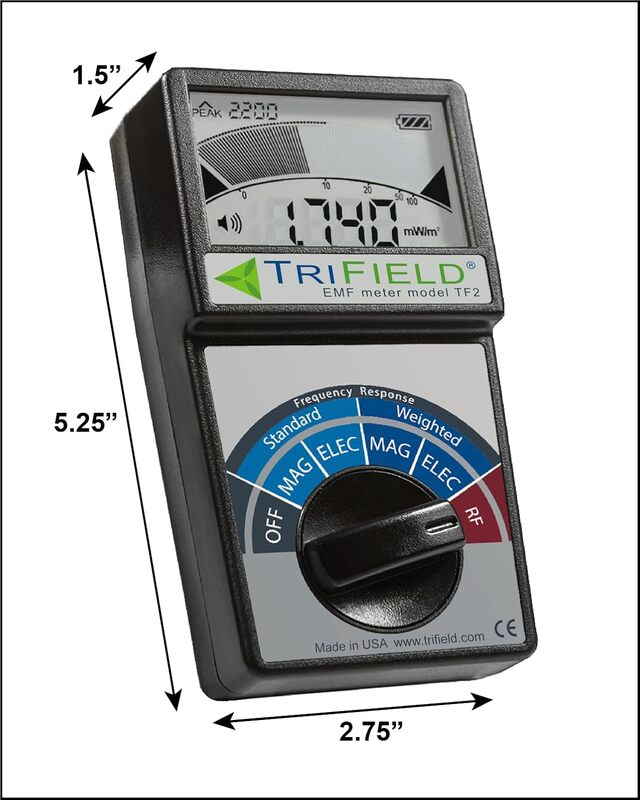

- Dimensions: 1.5 × 2.75 × 5.25 in
- Weight: 11 oz
- Certifications: CE, FCC compliant
- Warranty: 1-year limited manufacturer warranty with unlimited free consulting support
Ideal For
- Homeowners measuring EMF radiation from appliances, wiring, and WiFi
- Professionals testing electromagnetic emissions in buildings and workspaces
- Paranormal investigators analyzing electromagnetic anomalies
- Technicians performing field EMF surveys and mitigation planning
- Safety-conscious users monitoring exposure near cell towers and routers
Package Includes
- 1 × TriField TF2 EMF Radiation Detector
- 1 × 9V battery
- 1 × Quick-start information card
- 1 × Detailed instruction manual

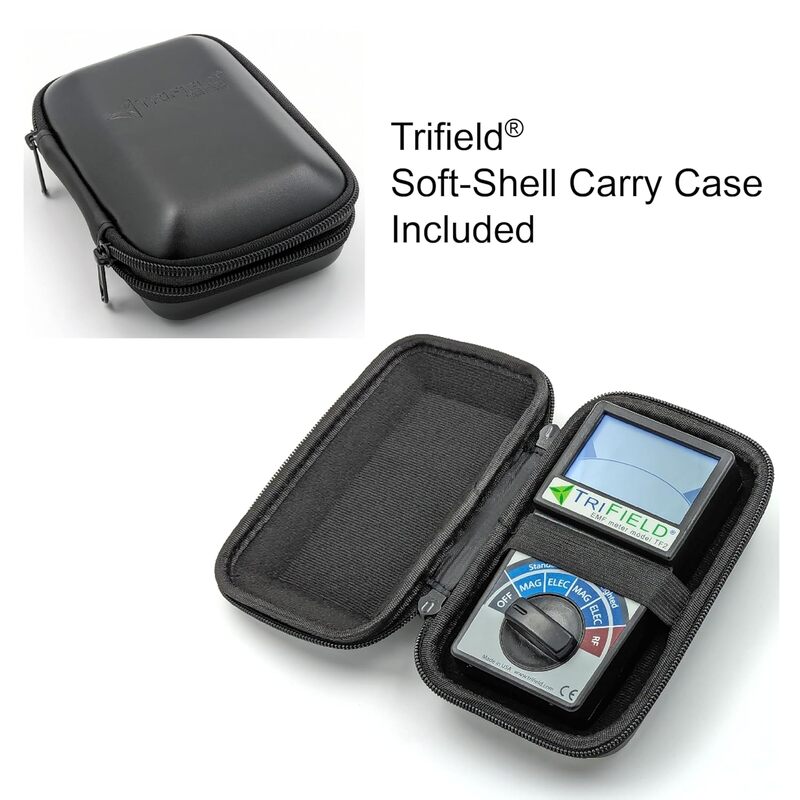

- 1 × Soft-shell zipper carry case
FAQs
What types of fields can the TF2 measure?
It measures magnetic, electric, and RF fields, covering most EMF sources including WiFi, Bluetooth, and power lines.
Does it detect 5G signals?
Yes, it detects most 5G frequencies up to 6 GHz, but not experimental millimeter-wave bands.
Can the TF2 measure radioactive emissions?
No, it does not detect ionizing radiation such as nuclear or radioactive emissions.
How accurate is the RF measurement?
RF measurements have ±20% accuracy at 1 GHz with sensitivity down to 0.001 mW/m².
Is it suitable for home use?
Yes, it is ideal for homeowners wanting to identify EMF sources and reduce exposure.
How is it operated?
Simply rotate the easy-turn knob to the desired field type and the device automatically begins measuring.
Does it require frequent calibration?
No, it's factory calibrated and does not require routine recalibration under normal use.
